THAM12
THAM12

FEATURES

Miniature 4.5x2.56mm size
Horizontal push type
Reflow solderable
Longer cover available

APPLICATIONS

Remote keyless entry
Navigation/audio systems
HVAC Overhead consoles
Steering
Shifters

SPECIFICATION

Items
Standard
Operating temperature range
-30℃ to +85℃
Electrical
performance
Rating
50mA. 12V DC
Insulation resistance100MΩ min. 100V DC
Dielectric strength250V AC for 1 min.
Contact resistance500mΩ max.
DurabilityLifetimeB=300,000Cycles C=100,000Cycles
Mechanical
performance		Operating forceB:180gf C:250gf
Travel
0.2±0.1mm

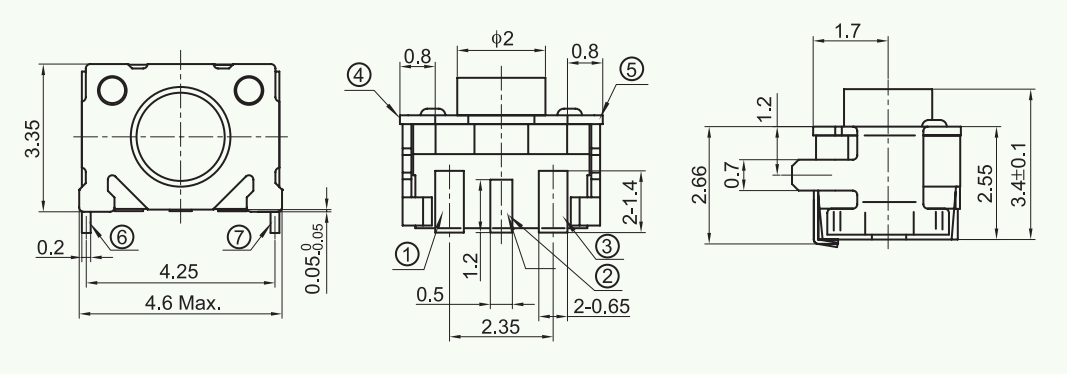

Dimensions

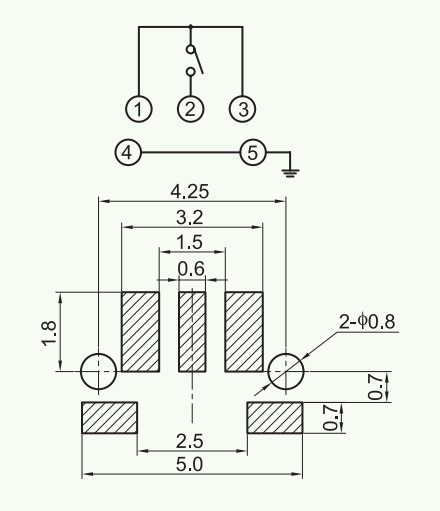

Circuit Diagram
